Home - Products - Battery Analyzer - BT-715 - BT715

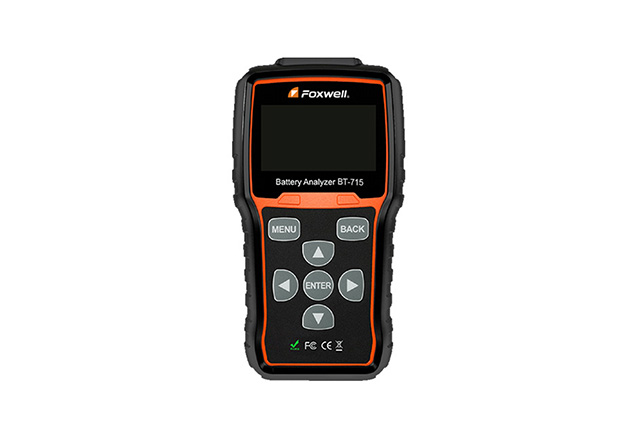

Battery Analyzer

The latest BT715 Battery Analyzer is dedicatedly developed to test 12V regular flooded, AGM/EFB flat plate, AGM/EFB spiral and gel batteries, Start-Stop AGM/EFB battery and 12V & 24V starting and charging system. It provides a quick, easy and affordable solution for technicians to check battery health and detect faults of startingand charging system.

1) Tests batteries from rated from 100 to 2000CCA

2) Tests multiple battery types - regular flooded, AGM flat plate, AGM spiral and gel Tests startstop AGM and EPB batteries

3) Tests multiple rating systems - CCA, CA, MCA, JIS, DIN, IEC, EN, SAE

4) Tests the batteries on the car directly no need to remove the battery

5) Quick and accurate test result display in just 3 seconds

6) Tests 12 & 24 volt charging system

7) Advanced starter/alternator test

8) Quick starter analysis without disabling the ignition

9) Does not emit light, heat or spark, or discharge battery keeps operation safe for all levels of users

10) Multilingual menu and test results English, Portuguese, Hungarian, Russian, French, German, Dutch, Spanish, Chinese, Japanese and Korean

Voltage measuring6V to 32VN/A
Battery typeFlooded, AGM, GELN/A
Battery rating100 - 2000CCA±(3%+5) CCA
Standard supportCCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAEN/A
Gross Weight25kgN/A


How to use Foxwell Bt715


Battery Analyzer
