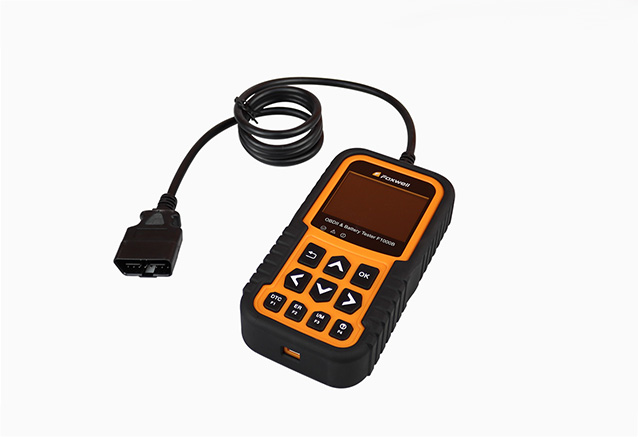

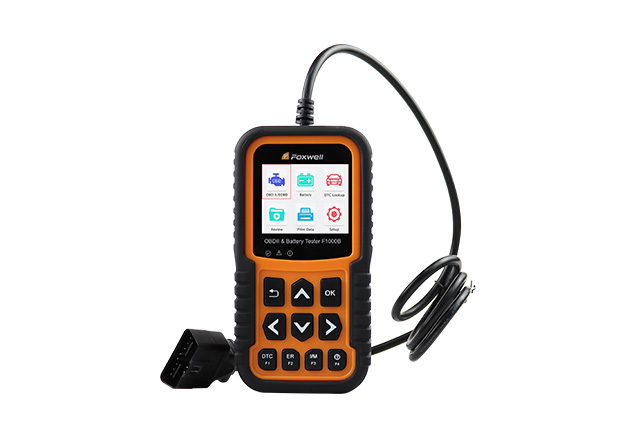

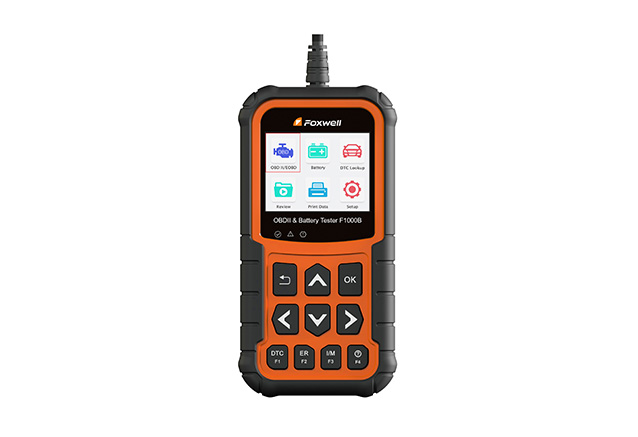

F1000B OBDII & Battery Tester

F1000B is a Battery Analyzer and OBD Code Reader which is dedicatedly developed to test 12V regular flooded, AGM flat plate, AGM spiral and gel batteries. It provides a quick, easy and affordable solution for technicians to check battery health. What's more, it provides fast solution for OBD faults.

1) Tests batteries from rated from 100 to 1100CCA

2) Tests multiple battery types - regular flooded, AGM flat plate, AGM spiral and gel EPB

3) Tests multiple rating systems - CCA, CA, MCA, JIS, DIN, IEC, EN, SAE

4) SOC, SOH and resistance test result display makes technicians easier and faster to judge the battery status

5) Tests the batteries on the car directly - no need to remove the battery

6) Quick and accurate test result display in just 3 seconds

7) Does not emit light, heat or spark, or discharge battery, keeps operation safe for all levels of users

8) Works with all OBDII/EOBD compliant cars, light-duty trucks, SUVs, minivans and hybrid sold worldwide

9) Red-Yellow-Green LEDs and built-in speaker provide both visual and audible tone for readiness verification

10) Turns off Check Engine Light (MIL), clears codes and resets monitors

11) Extremely easy to use with large backlight LCD display and menu-driven operation

12) Multilingual menu and test results - English, Spanish, German, Italian, French, Portuguese, Russian, Dutch, Japanese

13) Extremely easy to use with clearly arranged keypad, menu-driven navigation, and hot keys

Display2.8"TFT color display
Working Temperature0 to 60 ℃ (32 to 140℉)
Storage Temperature-20 to 70℃ (-4 to 158℉)
Power Supply8-18V vehicle power
Supported ProtocolsJ1850PWM, J1850-VPW, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)
Dimensions (L*W*H)172*97.5*32mm




Battery Analyzer
