Windows Diagnostic Platform Ⅳ

The latest tablet scanner GT90Max from Foxwell is changing the way car repairs are handled in the workshop. Through hardware and software upgrades, technical staff can now approach problems with greater speed and accuracy, and produce comprehensive, professional reports.

1) Compatible with the latest 2020/2021 models including cars, SUVs, minivans, lightduty trucks sold worldwide

2) 24 volt coverage – ISUZU trucks

3) Get access to powertrain, chassis and body systems

4) Identifies cars quickly and easily with automatic VIN reading

5) Auto scan function scans vehicle systems in seconds

6) Reads and clears diagnostic trouble codes

7) Views live vehicle sensors data in text, graph, and gauge formats

8) Allows to view multiple PID graphs simultaneously and merge them on one screen

9) Live data self learning and alarm when live data over range

10) Records and playback your datalogs to catch intermittent problems

11) Runs component/system bi-directional tests

12) Supports adaptations and control module coding

13) Key coding for several vehicles

14) Supports the most commonly required service features like brake deactivation, service resets, and transmission adaptations

15) Three years Free Update to have latest bug fixes, new vehicles and functionalities

16) Multilingual menus and code definitions for an international marketplace

17) Windows 10 Home operating system allows technicians to add other workshop applications and concentrate all applications on a single device

18) Instant support available from our technical team

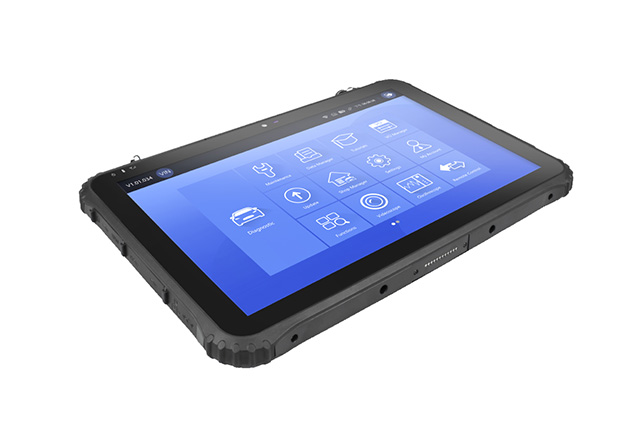

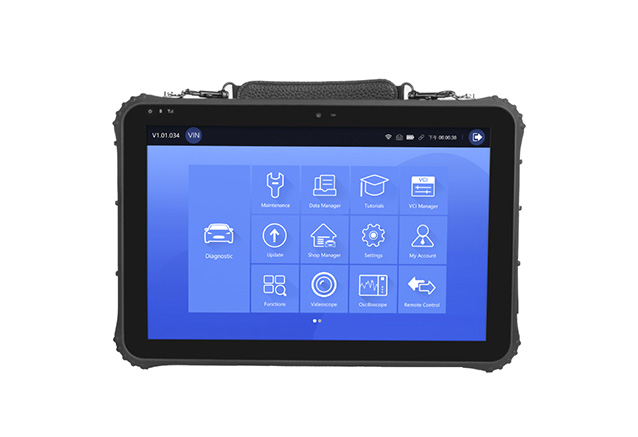

Touch Screen12.2" diagonal, daylight readable color LCD screen; 1920*1200 pixel
Dustproof and Waterproof LevelIP65
Touch with GlovesSupported
Operating SystemWindows 10 Home 64bit
ProcessorSkylake M3-6Y30 (4M Cache, up to 2.60 GHz)
SSD Hard drive128G
Communication InterfaceBuilt-in WIFI 802.11 a/b/g/n/ac Wireless LAN
USB2.0/USB3.0/Type C
Bluetooth 4.2 (10m)
Camera2 megapixels front-facing and 5 megapixels rear-facing
Working Temperature-10 to 50 ℃
Storage Temperature-30 to 70℃
Humidity95% Non-Condensing
Built-in Battery6300mAh/7.4V,1000mAh/7.4V (dual Lithium-polymer battery), chargeable via 12V/4A AC/DC power supply
ProtocolsISO9141-2, ISO14230-2, ISO15765-4, K/L lines, Double K Line SAE-J1850 VPW, SAE-J1850PWM, CAN ISO 11898, High-speed, Middle-speed, Lows-peed and Single wire CAN, KW81, KW82, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, SAE J1939, SAE J1939, SAE J1708, Fault-Tolerant CAN
Dimensions319.6*216*23.4 mm (L*W*H)
Weight1.5kg (main unit)
