·Compatible withModel 3/X/Y/S
·Provide automatic paring
·Pre-programmed with low energy
·Easy replacement /installation
·More than 6 years battery life
·Accurate monitoring for TPMS pressure,temperature and power

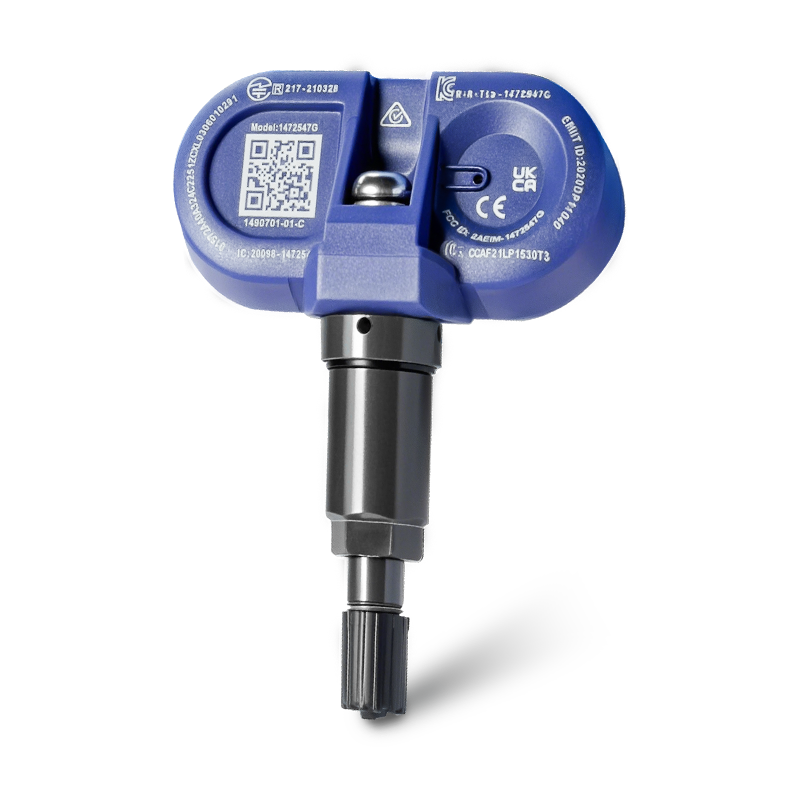

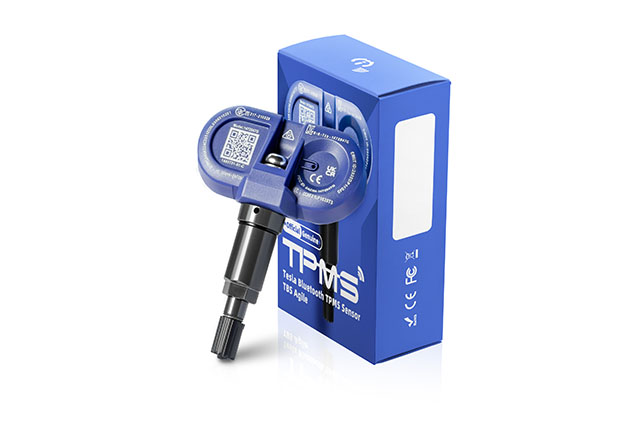

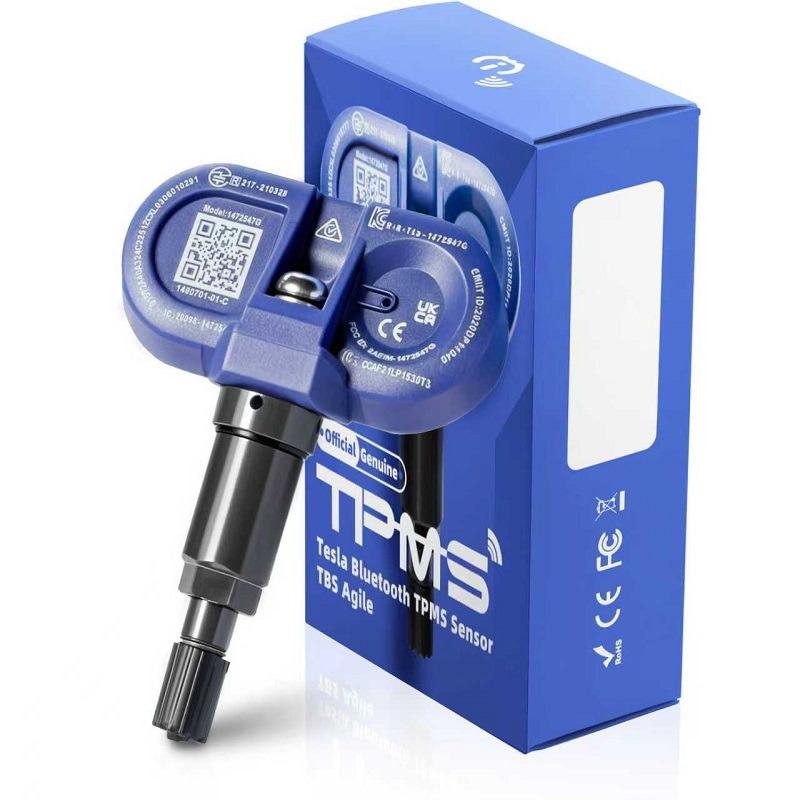

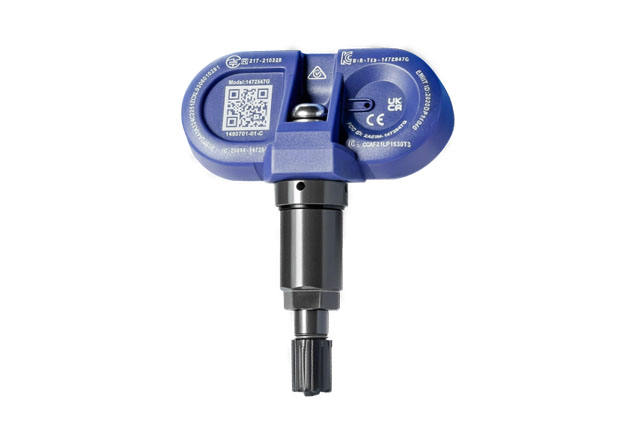

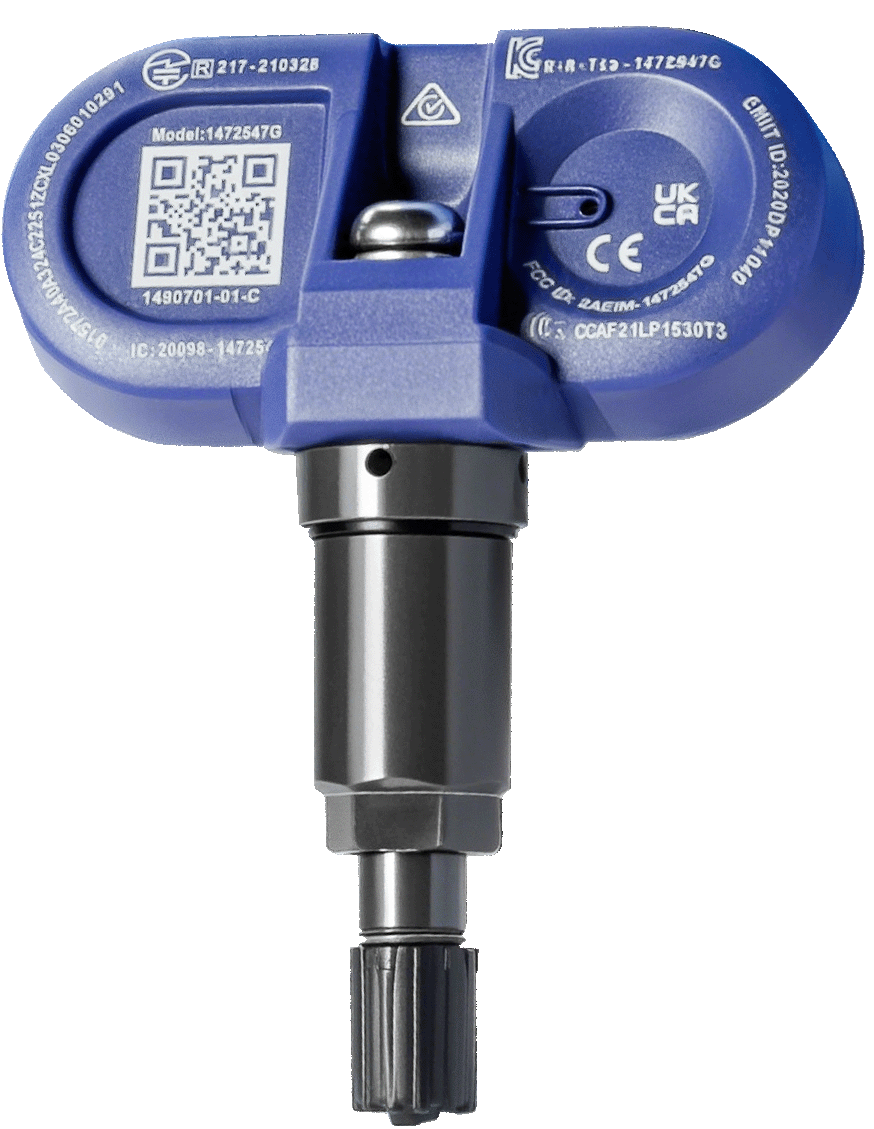

Foxwell TBS01 Tesla TPMS Sensor — Plug & Play, Accurate Tire Monitoring
Key Features
· Pre-Programmed and Ready to Use: Factory-matched to Tesla TPMS protocols. No manual programming or additional tools required—install and go.
· Real-Time Tire Monitoring: Provides precise pressure, temperature, and battery status for each tire, updating quickly and reliably.
· High-Precision Sensor: Ensures consistent and accurate data for safer driving.
· Durable Design: Waterproof, dustproof, and able to withstand extreme temperatures. Built-in battery lasts up to 6 years.
Easy Installation
Installing the TBS01 is simple and straightforward:
1. Remove the tire and install the TBS01 sensor in the wheel.
2. Drive a short distance to automatically pair with the vehicle.
3. No additional TPMS programming tools required—anyone can install it.
| Pressure Range | 100-900Kpa |
| Pressure Accuracy | 40°C~125℃±5KPa (0°C~90°C) ±7KPa（-20℃~0℃+90℃~+125°C) ±9KPa (-40℃C~-90℃) |
| Temperature Range | -40°C~105°C |
| Temperature Accuracy | -20℃~70℃,Accuracy+3℃ -40℃~-20℃,70℃C~125℃Accuracy+5℃ |
| Acceleration Range | 1g to 127g |
| Acceleration Accuracy | ±3g |
| Operating Temperature Range | -40℃~105℃ |
Life Span | 6 years |
| Carrier Frequency | 2.4GHz to 2.5GHz |
·Easy Replacement for OEM Parts
Foxwell TBS01 Tesla Bluetooth TPMS Sensor are manufactured according to the proprietary OEM quality specifications. It is applicable to all TESLA models.
·Crafted with Ingenuity, Smart Safety System
Real-time tire pressure monitoring to prevent accidents and improve driving safety.
·Accurate Detection, Four-wheel Independent Real-Time Tire Pressure
·Automatically Matching, No Need for Decoding
After installing the sensor, tire pressure data will be automatically recognized within 1-2 miles without programming or calibration.
·Automotive Grade, High-quality Chips
·Waterproof and Dustproof, No Fear of Harsh Environment
Even in bad roads and weather conditions, the sensor will not be affected.
Glue filling process：Gluing the tire pressure sensor can effectively prevent moisture and dust from entering the sensor and damaging its circuit, thereby improving the reliability and accuracy of the sensor.
·Cold and Heat Resistance
