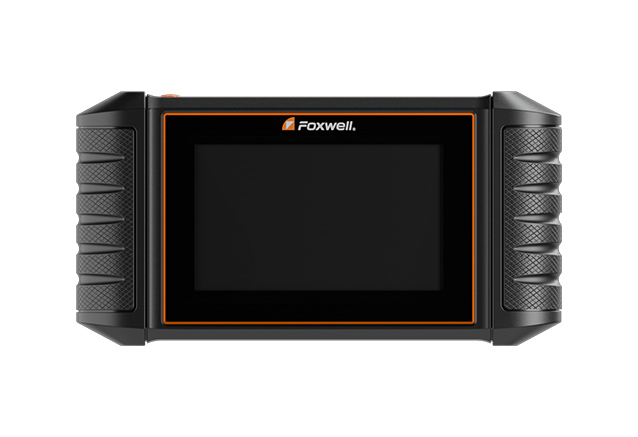

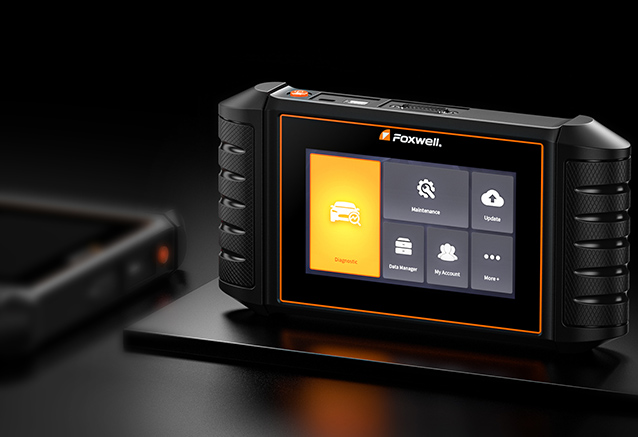

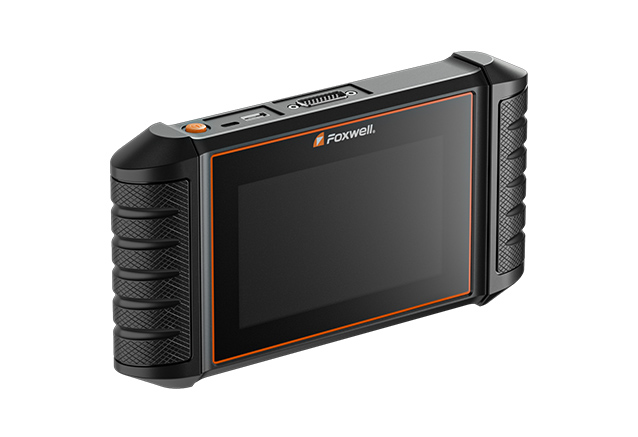

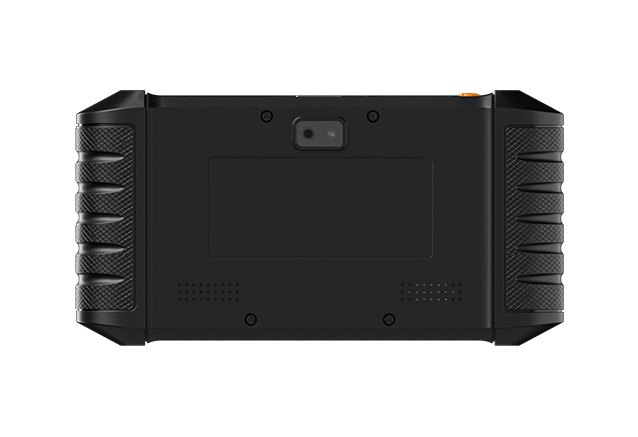

i50 Pro All-System & All-make Scanner with Special Functions

i50Pro is newly developed diagnostic scanner with Andorid 9.0 operating system. It offers techinicians and enthusiasts an easy and affordable solution to pinpoint troubles of all electronic modules on major American, Asian and European makes. Besides, it can supports the most common required service functions including Oil Reset, EPB, TPS, SAS, TPMS , DPF, Injector and ABS Bleeding etc.

1) Fast boot up and multitasking based on Andorid 9.0 operating sytem.

2) Provides easy diagnosis on multiple vehicle makes.

3) Works on both OBDI and OBDII vehicles including the latest 2020/2021 models.

4) Identifies cars quickly and easily with one-key VIN reading.

5) Reads and clears codes of all electronic modules.

6) Supports the most common required service functions including Oil Reset, EPB, TPS, SAS, TPMS, DPF, Injector and ABS Bleeding etc.

7) Shows live sensors data and provides data graphing

8) Merges PID graphs for easy and intuitive diagnosis.

9) Displays freeze frame data.

10) Retrieves ECU information.

11) Multilingual menu options and code definitions.

12) One Touch Update via WIFI makes the scanner keep the latest system status at all times.

13) One Touch Complaint allows for quicker and more accurate fixes for your diagnostic troubles and bugs.

14) Instant support available from our technical team by teamviewer remote control.

Screen5.5'' diagonal, daylight readable color LCD screen; 1280*720 pixel
Operation SystemAndroid 9.0
Memory1GB DDR4
SSD Hard drive32GB
Communication interfaceBuilt-in WIFI 802.11 b/g/n Wireless LAN
USB2.0 OTG/standard USB 2.0 HOST
Bluetooth specification v2.1+EDR; Bluetooth 4.0 Low Energy (LE) (10-20 m)
Built-in Battery4000mAh, Lithium-polymer battery, chargeable via 5V USB power supply
ProtocolsISO9141-2, ISO14230-2, ISO15765-4, K/L lines, Double K Line SAE-J1850 VPW,SAE-J1850PWM,CAN ISO 11898, High-speed, Middle-speed, Lows-peed and Single wire CAN, KW81, KW82, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, SAE J1939, SAE J1939, SAE J1708,Fault-Tolerant CAN
Working Temperature-10 to 70°C
Storage Temperature-20 to 80°C
Operating Humidity5%-95% Non-Condensing
Dimensions236*124*38mm (L*W*H)
Weight0.87kg (Main unit)
