Premier Diagnostic Platform Ⅱ

The newly released Foxwell i80Max, featuring multitasking Android 8.1 operating system, 10.1inch LCD touchscreen, fast quadcore processor, extensive coverage and OE-level diagnosis, is built for maximum convenience and efficiency during diagnosis and service work.

1. Fast boot-up and multitasking with the latest Android 8.1 operation systems

2. Vehicle coverage for more than 90 US, Asian and European vehicle makes and more will be continuously updated

3. Works on all electronic systems

4. Automatic VIN reading upon connection to the vehicle for intelligent diagnosis

5. Auto Scan function scans vehicle systems in just seconds

6. Views live vehicle sensors data in text, graph and gauge formats

7. Live data self learning and alarms when live data over range

8. Records and plays back data-logs to catch intermittent failures

9. Supports professional Pre-scan report and Post-scan report

10. Supports bi-directional controls, actuation test, control module coding and all other diagnostic functions

11. 26 special functions available, including Oil Reset, EPB, BRT, AT Transmission, DPF, Gear Learn, Injector Coding, Odometer, SAS, TPMS, TPS, ABS Bleeding etc.

12. Key coding for several vehicles

13. Supports VCI remote diagnosis

14. Three years Free Update to have latest bug fixes, new vehicles and functionalities

15. Compatible with Oscilloscope, Videoscope and Wireless Printer

16. One touch update via WIFI and One key complaint

17. Unique debug log collection feature allows for much faster fixes for bugs and failures

18. Instant support available from Foxwell technical team

19. Ergonomic design and ruggedly built for professional workshop use


Screen10.1" diagonal, daylight readable color LCD screen; 1920x1200 pixel
Touch With GlovesSupported
Operating SystemAndroid system
CPUQuad-Core, 1.8GHZ
SSD Hard Drive64GB
Communication InterfaceWIFI IEEE 802.11 a/g/b/n Wireless LAN
micro USB 2.0 OTG, USB 2.0 HOST standard
Bluetooth 4.0 (10-20 m)
Camera13 megapixels rear-facing, with LED flashlight
Battery10000mAh/3.7V , lithium-polymer battery. Chargeable via 12V/3A DC power supply
ProtocolsISO9141-2, ISO14230-2, ISO15765-4, K/L lines,Double K lines,SAE-J1850 VPW, SAE-J1850PWM, CAN ISO 11898, High-speed, Middle-speed, Low-speed and Single-wire CAN, KW81, KW82, GM UART, UART Echo Byte Protocol, TP2.0, TP16, SAE J1939, SAE J1708, Fault-Tolerant CAN

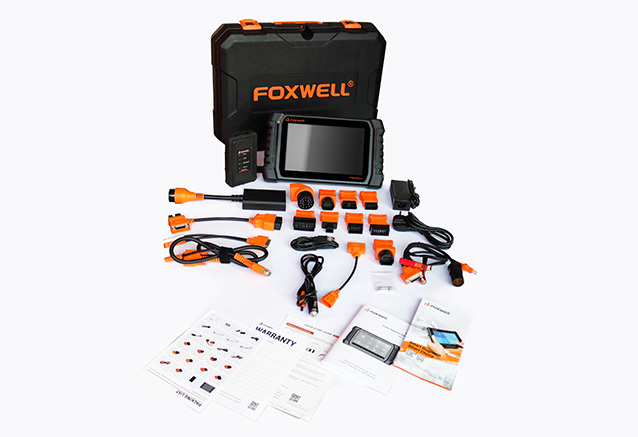

Foxwell i80 max unboxing.
