1) Works with all OBDII/EOBD compliant cars, light-duty trucks, SUVs, minivans and hybrid sold worldwide
2) One-key emissions test and code reading
3) Red-Yellow-Green LEDs and build-in speaker indicate emissions monitor status
4) Clears codes, turns off Check Engine Light (MIL) and resets monitors
5) Reads freeze frame data
6) Shows live vehicle sensors data in text and graph formats
7) Record and playback live sensor data to capture intermittent problems
8) Reads O2 sensor/on-board monitor test data
9) Retrieves vehicle information (VIN, CID and CVN)
10) Enhanced Mode 6 functions
11) Keeps records of test results for off-vehicle review
12) Multilingual menu options and code definitions
| Model | NT301 |
| Display | 2.8'' TFT color screen |
| Operating Temperature | 0 to 60℃ (32 to 140℉) |
| Storage Temperature | -20 to 70℃ (-4 to 158℉) |
| Power | 8 -18 Volts powered by vehicle battery |
| Supported Protocols | J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898) |
| Dimensions | 145*94*32mm |
| Weight | 0.6KG |
| Dimensions of Packaging | 265*175*42mm |
| Dimensions of Carton | 530*525*336mm |
| PCS/CTN | 48PCS |
| Net Weight/CTN | 28.8KGS |
| Gross Weight/CTN | 30KGS |
None

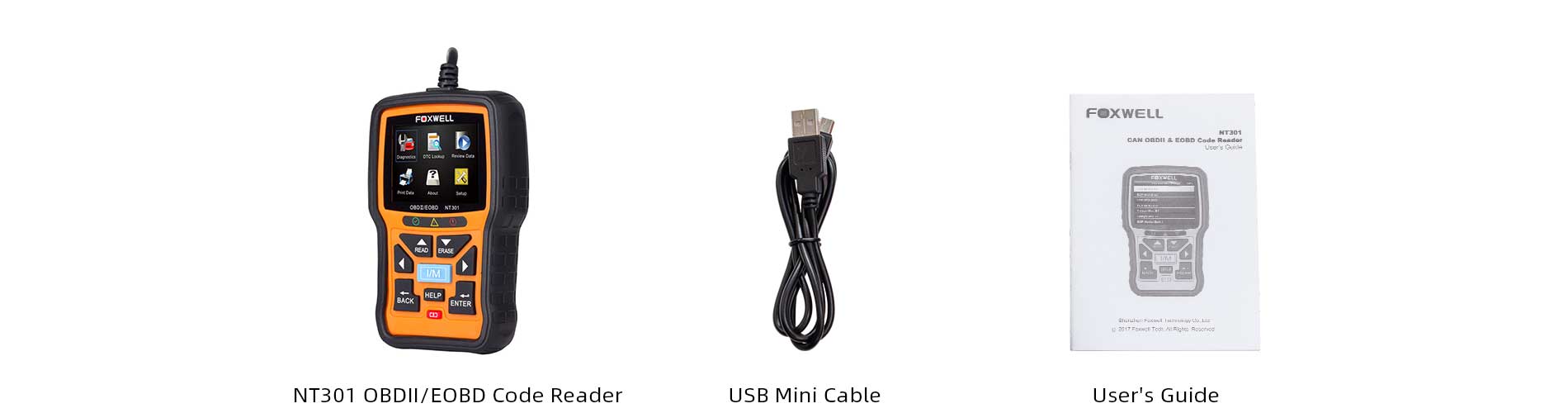

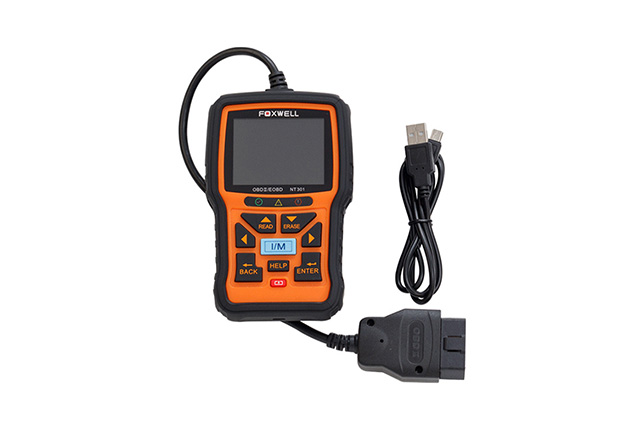

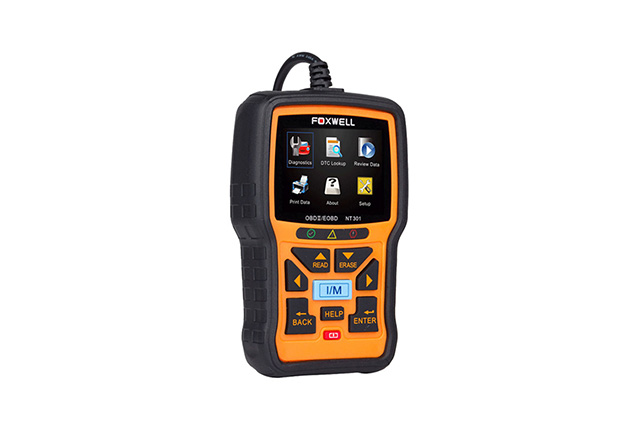

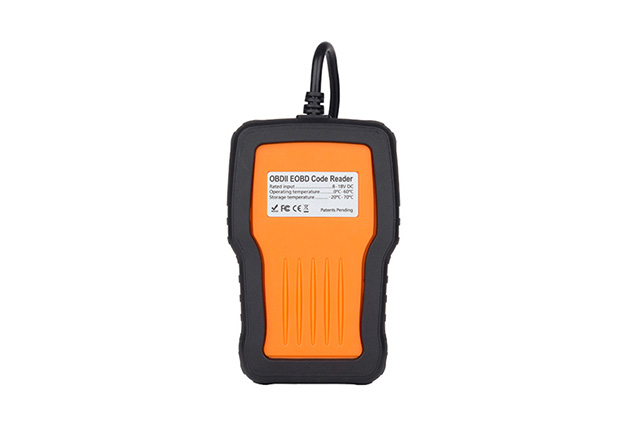

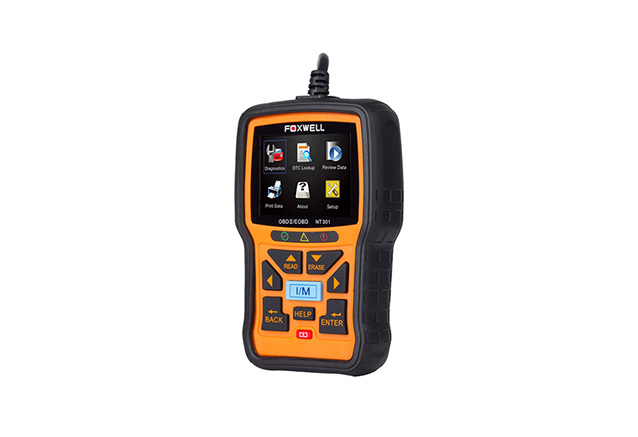

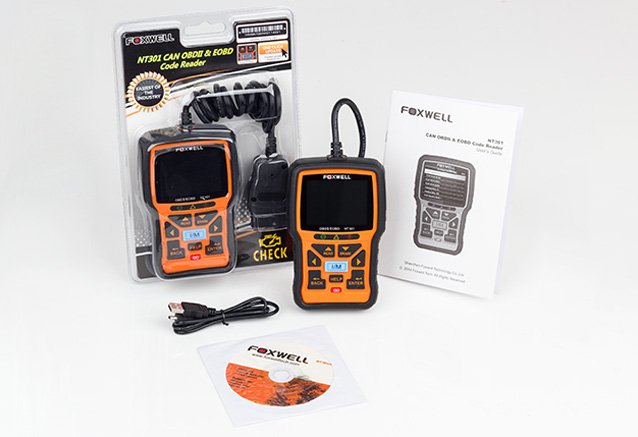

Foxwell NT301 CAN OBDII/EOBD Code Reader
